ASUS Maximus II Formula P45 Motherboard

CPU and Memory Benchmarks

SiSoftware Sandra (the System ANalyser, Diagnostic and Reporting Assistant) is an information & diagnostic utility capable of benchmarking the performance of individual components inside a PC. Each of the benchmarks below were run a total of five times with the highest and lowest scores being discarded and an average being calculated from the remaining three.

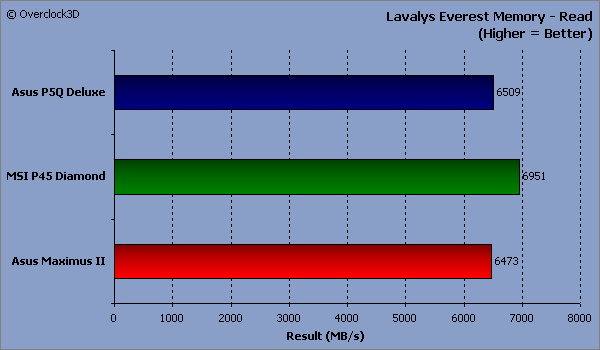

Everest is in many ways similar to Sisoft Sandra. Focusing mainly on software and hardware information reporting, Everest also comes with a benchmark utility suitable for testing the read, write and latency performance of the memory subsystem. Each of these benchmarks were performed a total of 5 times with the highest and lowest scores being discarded and an average calculated from the remaining 3.
Results Observations
As all the motherboards on test are based around the P45 chipset, it comes as no surprise that all of the scores are very similar. However, it is noticeable that the Maximus II falls behind in the majority of the tests, albeit by a very small margin. Consideration also has to be given to the MSI board, which utilises DDR3 as opposed to the two Asus boards, which use DDR2.
«Prev 1 2 3 4 5 6 7 8 9 10 11 Next»

Most Recent Comments

10-07-2008, 09:01:45

Tis very very nice indeed. I really like the look of it.

That said.. With the new Rampage looking just as good, If I had the wedge and was after a new mobo, I'd plump for the Rampage.Quote

10-07-2008, 09:57:02

Mr. Smith
Rich, your OC tests - is the 3.9 jiggahurtz stable or just a screenie? Also, how does that compare to other mobos you've had the chip on?

I think that is relevant...

Ta Quote

10-07-2008, 10:15:55

Prime95 was run for overnight (8 hours) aswell as a 1hr hour OCCT run - not exactly proof of 24/7 stability but it's good enough imo. This is compared against similar results with the MSI and P5Q deluxe. I rated the Maximus higher as, along with the ridiculous amount of BIOS tweaks available with more time and a more mature BIOS it is my belief the Maximus can at least equal the P5Q, not only that but gaming wise the maximus is already ahead of the P5Q albeit not by much.

Also overclocking on air, as I'm sure you are aware, can be heavily influenced by ambient air temps which due to the recent hot weather is limiting the possibilities. Using phase change is not realy an option as it isn't indicative of the 'average' user and wouldn't give a fair representation of the possibilities of the motherboard.

Because the P45 uses PCIE 2.0 which is double the bandwidth of PCIe 1.1 the need for 16 lanes is debatable so going for an X48 (which appears not to clock as good as P45) is not a decision that should be taken lightly. I guess it comes down to if you want every last ounce of CPU or GPU power - CPU = P45, GPU=X48 imo.Quote

10-07-2008, 11:20:50

Wow, Nice review

One thing that was in the press release, but I didnt see demonstrated, was the removable part of heatpipe cooling on the NB?

Is this possible?Quote

10-07-2008, 11:22:20

WC Annihilus
Edit: think I read that wrongQuote
